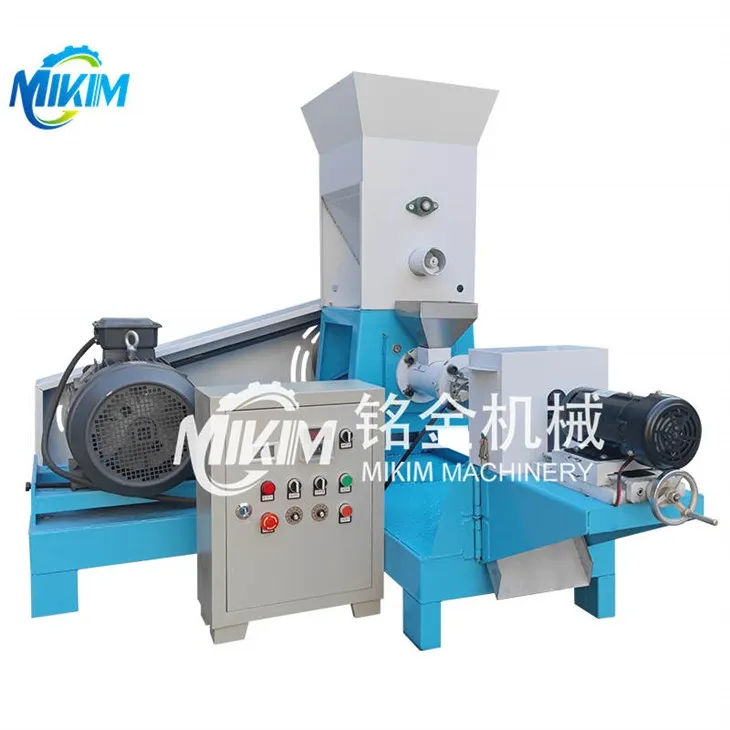

Pub Extruder



• Lub tshuab no yog pellet pub extruding khoom. Khoom noj ntses, khoom noj miv, zaub mov dev thiab lwm yam tsiaj pub extruders. Nws tuaj yeem tsim ntau hom paj, thiab cov pwm tuaj yeem kho raws li qhov xav tau.
• Lub qhov hluav taws xob cov khoom yog nruab nrog ib zaus hloov dua siab tshiab ceev regulating teb tej cuab yeej, uas yuav kho cov hniav rotation ceev arbitrarily tswj lub txiav ceev thiab ntev.
• Cov khoom siv no siv cov pob kws, taum mog (taum ncuav mog qab zib) tsiaj cov khoom siv raw li cov ntaub ntawv raw, thiab tuaj yeem ncaj qha ntxiv rau hauv lub tshuab los tsim cov khoom sib txawv nrog cov duab tshiab, saj tshwj xeeb, khoom noj khoom haus nplua nuj thiab cov nqaij mos. Nws yog tsim rau dev, miv, ntses, noog, luav, cw, tos.
• Yog tias cov khoom siv raw yog hmoov, nws tuaj yeem ua ncaj qha rau hauv granules; Yog tias cov ntaub ntawv raw yog qhov loj me, ua ntej, peb yuav tsum tau crushed rau hauv cov hmoov tsawg dua 3 hli.
• Kuj tseem muaj qee qhov kev xav tau rau cov khoom siv raw, yog tias nws tsawg dua 30%, nws yog qhov zoo dua.



Cov khoom noj ntses pellet ua tshuab tuaj yeem tsim tau ntau yam khoom noj pellets: tsiaj pub, dej pub, thiab lwm yam xws li: zaub mov miv, zaub mov dev, ntses noj, ntau yam nuv ntses, nesting feed, floating water feed, submerged water feed, { {0}} hli pellets. Nws yog tsim rau cov neeg ua liaj ua teb, me me thiab nruab nrab cov khoom noj khoom haus thiab cov chaw tshawb fawb. Cov extruded pub pellets tsim los ntawm lub tshuab no yog huv si thiab du.









Qauv	40	60	70	80
Hwj chim	5.5 KW TSI	15 KW	18.5 KW TSI	22 kWm
Qhov hnyav (kg / h)	40-50	120-150	150-200	200-250
Qhov hnyav	300 KG	360 KG	450 KG	850 KG
Loj (mm)	1350-1100-1250	1450-1150-1250	1650-1250-1350	1800-1600-1300













Muaj ob lub qauv ntawm cov khoom no, qub thiab tshiab, nrog rau cov nram qab no sib txawv thiab nta. Nyem qhov no kom paub meej ntxiv.





Kab rov tav qauv

Lub thawv hluav taws xob tswj tau tsim nyias, thiab nws tuaj yeem muab tso rau ntawm qhov xav tau, thiab lub tshuab txiav riam yog tsim rau hauv lub rooj qhib. Yooj yim txav thiab qhov chaw, yooj yim los tswj.





Vertical qauv

Ib qho qauv tsim qauv, lub vaj huam sib luag ua haujlwm thiab lub tshuab ua ke, thiab lub rooj zaum zawv zawg occupies ib qho chaw me me. Muaj kev nyab xeeb thiab yooj yim dua.





Qauv	45	65	75	85
Hwj chim	5.5 KW TSI	15 KW	18 kWm	22 kWm
Qhov hnyav (kg / h)	40-50	100-150	250	350
Qhov hnyav	350 KG	500 KG	750 KG	850 KG
Loj (mm)	1800*810*1080	1700*970*1240	1700*970*1240	1850*1070*1400









① Sib tov khoom → ② Pub extruder → ③ Stainless hlau tshuab ziab khaub ncaws → ④ Lub hnub qub anise seasoning tshuab



1. Muab cov khoom siv raw thiab cov dej zoo sib xws rau hauv cov khoom sib tov, thiab do kom sai thiab sib npaug.

2. Muab cov khoom sib xyaw ua ke rau hauv kev pub noj hopper ntawm extruder, qhib lub tshuab pub mis, tswj qhov kub thiab txias, thiab txiav rau puffing ntau lawm.

3. Muab lub thawv tso rau hauv qhov chaw nres nkoj tawm ntawm lub extruder, thiab siv lub thawv los tuav cov granules semi-tiav lawm.

4. Muab cov granules ib nrab ua tiav rau hauv lub thawv rau hauv lub tshuab ziab khaub ncaws, tig lub tshuab ziab khaub ncaws, thiab ziab nws sib npaug.

5. Lub qhuav semi-tiav granules yog muab tso rau hauv lub hnub qub anise seasoning tshuab, thiab cov tsiaj rog nrog ib tug zoo piv yog ntxiv rau tumbling seasoning.

6. Tom qab seasoning, ncuav tawm cov granules, uas yog cov zaub mov tiav lawm.
